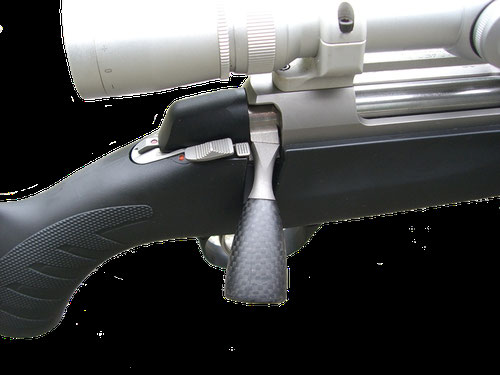

This is a direct, screw-in replacement for your original Sako A7 bolt handle CNC machined from Grade 5 titanium alloy. Our handle consists of two pieces: a garnet-blasted titanium sleeve that matches the external profile and finish of the original
factory handle, which is then secured into the bolt body by a titanium fastener with the common 5/16"x24 TPI thread to suit a wide variety of bolt knobs including our carbon fiber version

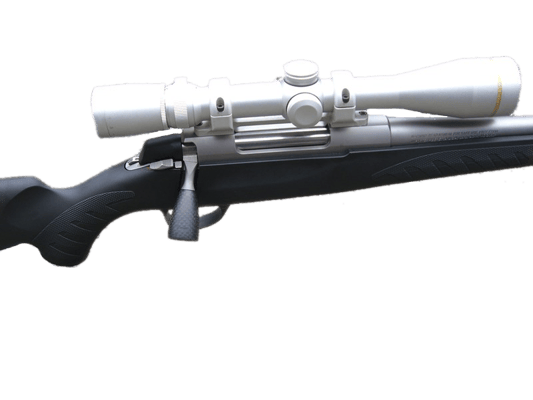

Our handle and knob combo fits all Sako A7 models in both left and right handed configurations. We include our oversized bolt

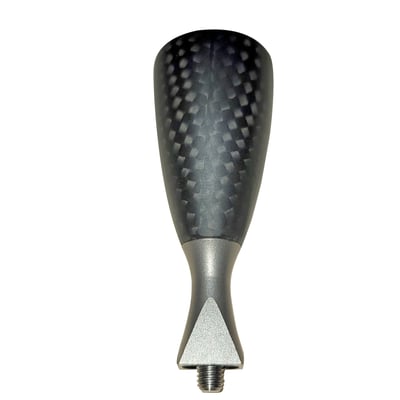

knob made from genuine carbon fiber (5/16"x24 TPI thread) .
The factory handle of the Sako A7 is retained in the bolt body by a hex head bolt using a metric M5 thread. Our handle uses a custom titanium grade 5 bolt with the
same M5 thread but with a tapered and threaded end for the bolt knob to screw onto (5/16"x24 TPI). A profiled titanium sleeve is held captive between this bolt knob and the bolt body once
The factory handle can be removed by firstly removing the factory knob then using a hex key to unscrew the fastener retaining the factory handle to the bolt. Our
handle can then be installed by inserting our fastener through the sleeve with the hex socket facing away from the bolt body. Screw the M5 (smaller thread) end of this fastener into the bolt body
firmly using a hex key. The bolt knob can then be screwed into the end of the handle. Ensure sleeve is aligned to mating end of spigot on bolt body as pictured above.
(1) If using a thread locking compound to attach the bolt handle or bolt knob, we don't recommend using anything stronger than purple Loctite (222) or equivalent.
(2) If using a stronger thread locking compound, be very careful never to overheat the bolt if using a propane torch to remove the handle in the future.
